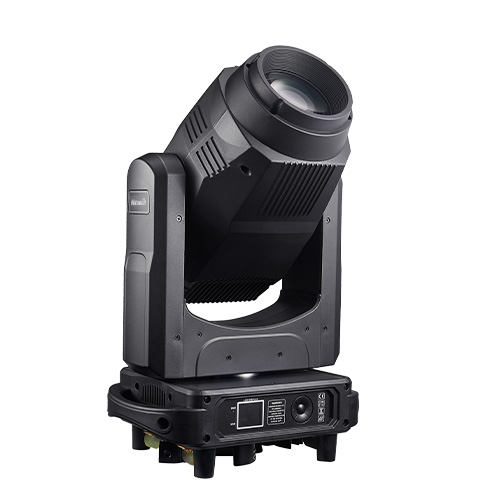

500W LED 3-in-1 Hybrid Moving Head Light

500W LED 3-in-1 BSW Moving Head Light front view

500W LED Beam Spot Wash Moving Head Light side view

Professional 500W LED BSW Moving Head Stage Light

500W LED Moving Head Light with advanced lighting effects

500W LED 3-in-1 Hybrid Moving Head Light

500W LED 3-in-1 Hybrid Moving Head delivers powerful beam, spot, and wash effects. Featuring CMY, CTO, gobos, animation wheel, and dual prisms for dynamic stage visuals.

Modello di marca :
QR-LM500B
Tensione di ingresso :
AC100V-240V, 50/60Hz
Fonte di luce :
500W LED module
Ruota dei colori :
8+1/CMY/CTO
Dimensioni del prodotto :
38*26.9*68.4cm
Peso netto :
23.5kg
Livello di protezione :
IP20
Modalità canale :
24/34/39CH

RICHIESTA ORA

Function Description

500W LED 3-in-1 Hybrid Moving Head combines powerful brightness with creative lighting flexibility. Equipped with linear CMY color mixing, CTO correction, a color wheel, rotating and fixed gobo wheels, an animation wheel, and dual prisms, it creates smooth color transitions, layered beam effects, dynamic textures, and immersive stage visuals. Built for professional use, it is an ideal solution for theatres, entertainment venues, concerts, and touring productions.

Technical Parameters

Light Source System

Light source specification: 500W LED module
Light source color temperature: 8200K
Light source life: 20000 hours

Optical System

Zoom range: electron linear zoom 4-42 degrees
Lens diameter：138mm
Lux：130000 Lux@5m

Color System

Independent CMY color mixing system
Linear CTO color temperature correction (7400-3500K)
1 Independent Color Wheel with 8 Colors, featuring step and linear color-changing modes

Gobo System

Rotating gobo wheel: 7 pluggable glass gobos, each gobo can rotate independently in both directions
Gobo sheet size: outer diameter 22.9mm±0.2mm, inner diameter 15mm, thickness 1.1mm
Fixed gobo wheel: 6 fixed gobos+white, which can change speed and shake

Effect

Dynamic effect wheel: super cool simulation of dynamic and moving flames, gurgling water and other dynamic Effect
Prism: 4 facet prisms and 4 facet prisms, can rotate independently in both directions
Dimming: 0-100% linear adjustment
Strobe: multiple speed electronic strobe Effect
Frost: 1 independent frost , 0-100% frost, natural and soft light spot

Pan & Tilt

Pan/Tilt Movement:540°/270°
Automatically return to its original position and perform 16-bit precision fine-tuning
A magnetic encoder positioning system is adopted

Electrical & Interface

Input voltage: AC100V-240V, 50/60Hz
Rated power: 540W
Signal interface: 3-core XLR signal input/output

Control & Programming

Channel mode: 24/34/39CH
Control protocol: standard DMX512/RDM protocol
Display mode: 2.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
Software upgrade: software can be upgraded via DMX signal cable
Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system
