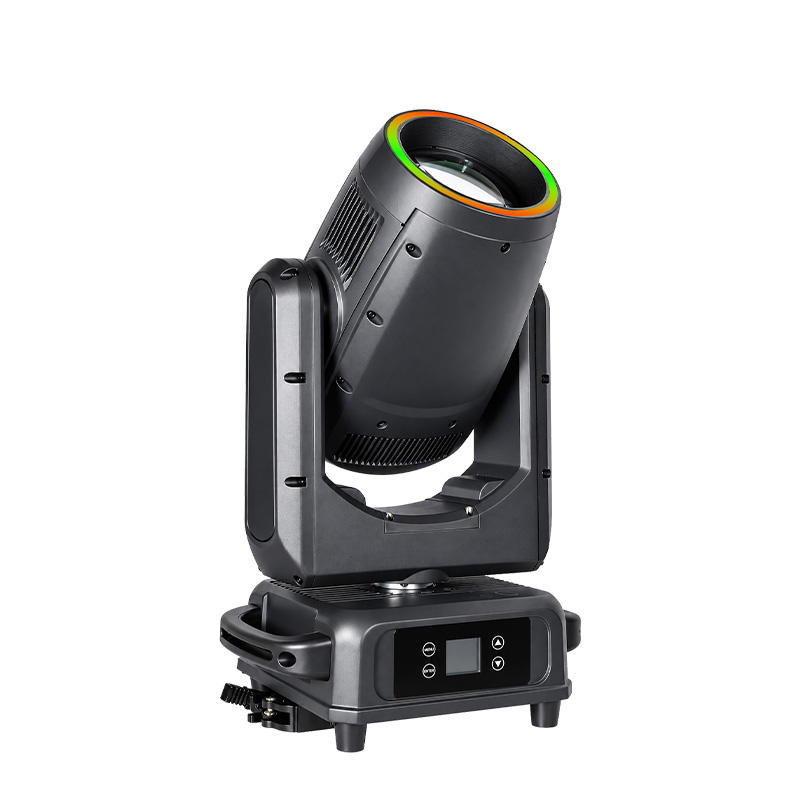

120W IP66 Laser Beam Moving Head

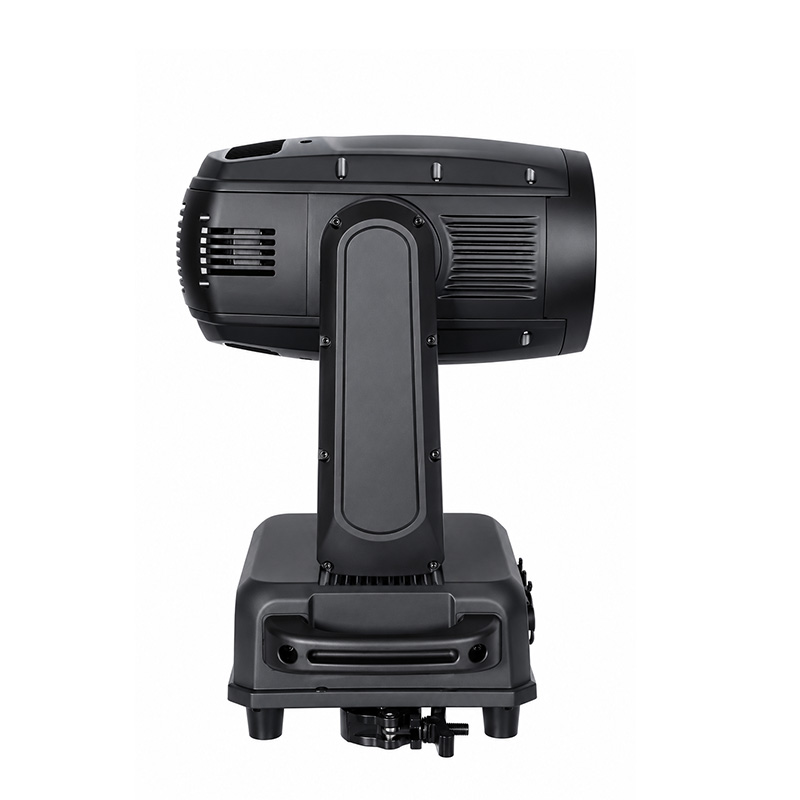

NOWLIT QR-LS120IP66 120W laser beam moving head side view

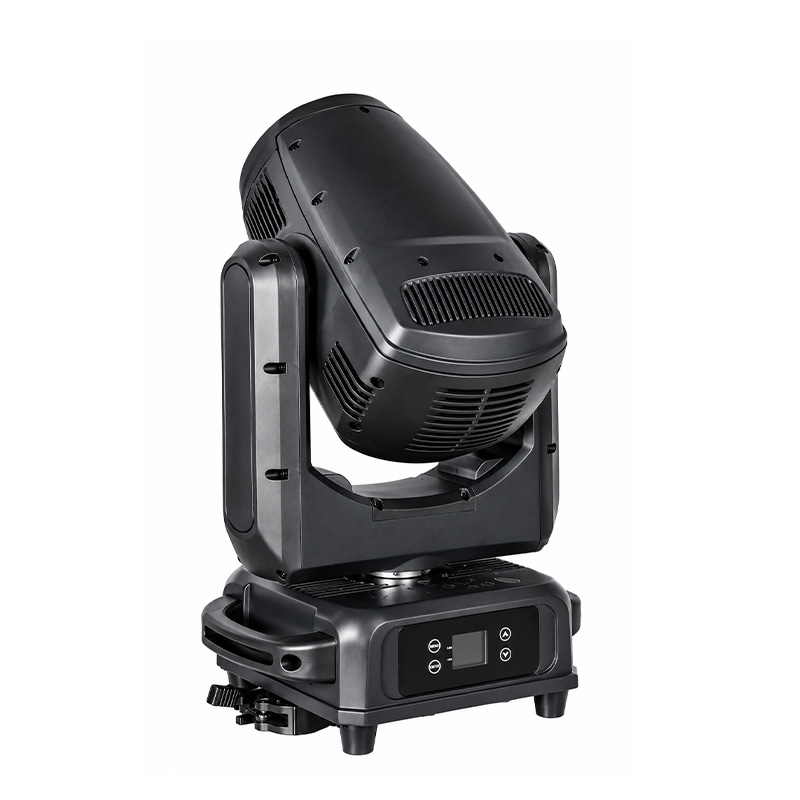

QR-LS120IP66 IP66 laser moving head light view

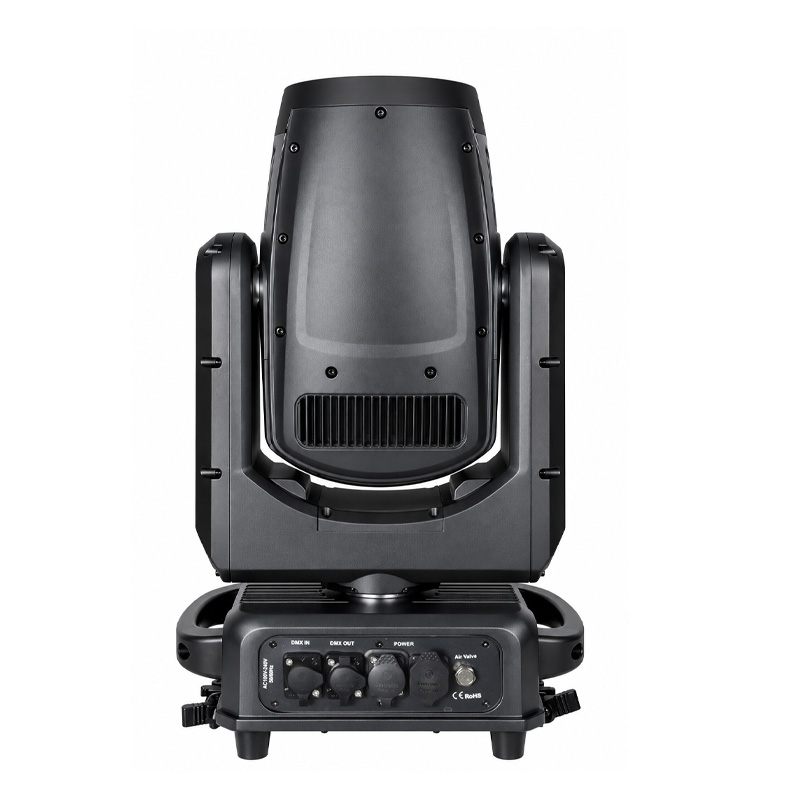

NOWLIT QR-LS120IP66 waterproof laser beam light front view

120W IP66 Laser Beam Moving Head

120W IP66 Laser Beam Moving Head — Mini size, high brightness, razor-sharp beams and stunning prism effects. Built for outdoor concerts, festivals and touring.

Modello di marca :
QR-LS120 IP66
Tensione di ingresso :
AC 100–240V, 50/60Hz
Fonte di luce :
120W Laser Module + auxiliary LEDs
Ruota dei colori :
14 colors+Rainbow
Modalità canale :
18CH
Livello di protezione :
IP66
Dimensioni del prodotto :
33.5 × 22.3 × 58 cm
Peso netto :
15.7 kg

RICHIESTA ORA

Function Description

120W IP66 Laser Beam Moving Head — Looking for a mini laser moving head with high brightness? This 120W laser beam moving head delivers powerful output, ultra-sharp laser beams, and crisp prism effects. Featuring dual rotating prism systems, 14 colors, and 14 metal gobos, it creates striking aerial beam effects for outdoor concerts, music festivals, touring productions, and live events. With IP66-rated protection, it is built for demanding outdoor applications.

Technical parameters

Light Source System

Light source: 120W Laser Module + LED Strip
Color temperature: 11,000 ± 500K
Light source lifespan: >20,000 hours

Optical System

Beam angle: 1°

Color System

Color wheel: 1 independent color wheel with 14 colors, featuring both step and linear color change modes, with half-color effects
Rainbow effect: Dynamic, vibrant rainbow effects

Gobo system

Fixed gobo wheel: 14 metal gobos + open, with variable-speed gobo shake effect

Effect

Prisms: 1 × 8-facet prism + 1 × 8+16+24-facet prism, each with independent forward and reverse rotation
Dimming: 0–100% linear dimming
Strobe: Multiple-speed electronic strobe effects
Frost: 0–100% frost effect for smooth, soft-edged beams

Pan&Tilt

Pan: 540°Tilt: 240°
Positioning: Automatic position reset and 16-bit fine positioning

Electrical and Interface

Input voltage: AC 100–240V, 50/60Hz
Rated power: 180W
DMX connectors: 3-pin XLR input/output

Control and Programming

Control channels: 18CH
Control protocols: DMX512 / RDM
Display: 1.8-inch LCD display with bilingual Chinese/English menu and 180° screen rotation
Energy-saving sleep mode: Automatically enters sleep mode when the signal is disconnected
Software upgrade: Firmware upgrades via DMX signal cable
Cooling system: High-efficiency copper heat pipe cooling system, intelligent variable-speed fan, and built-in temperature sensor for automatic thermal management
